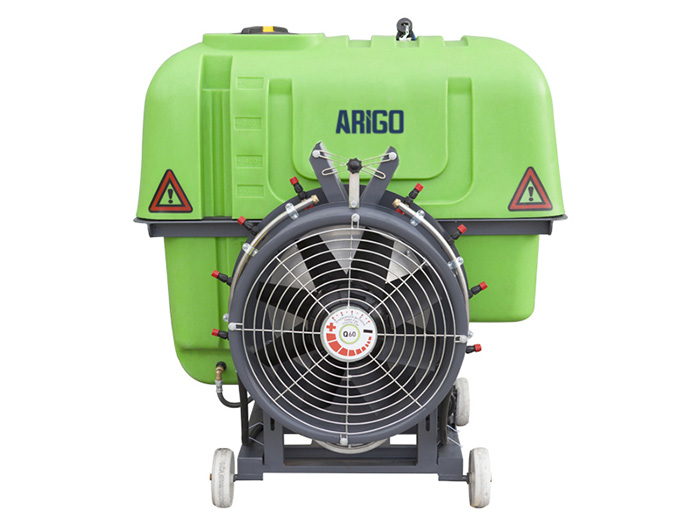

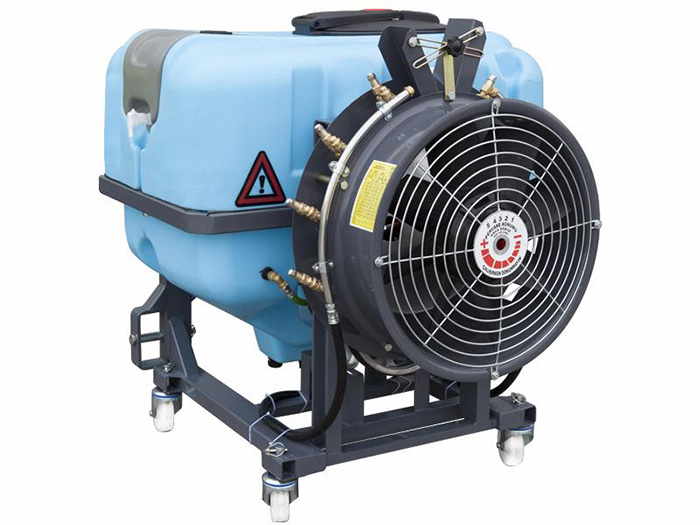

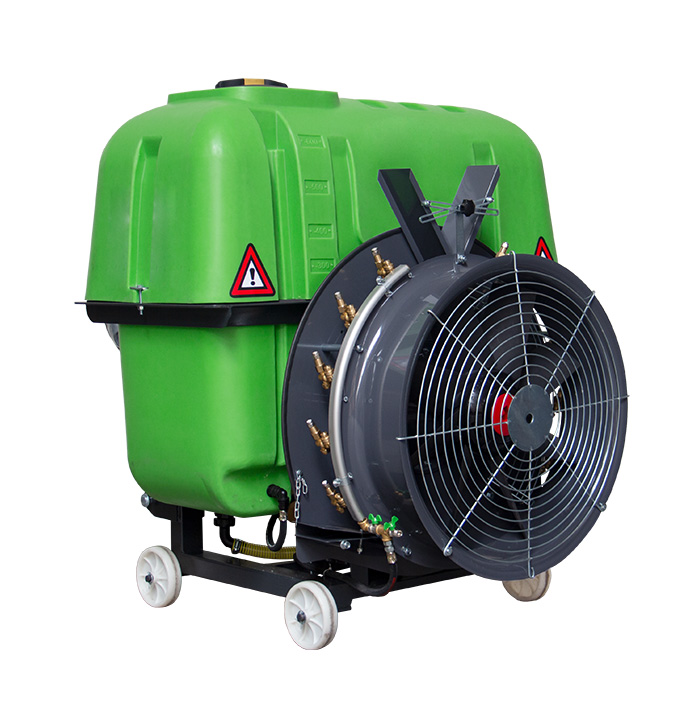

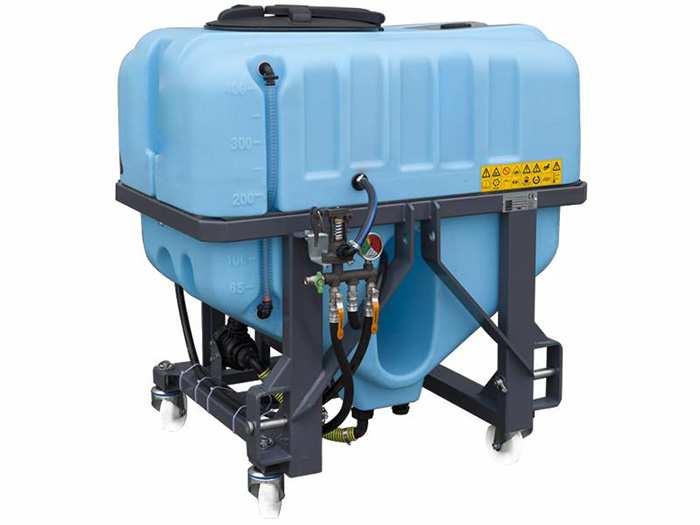

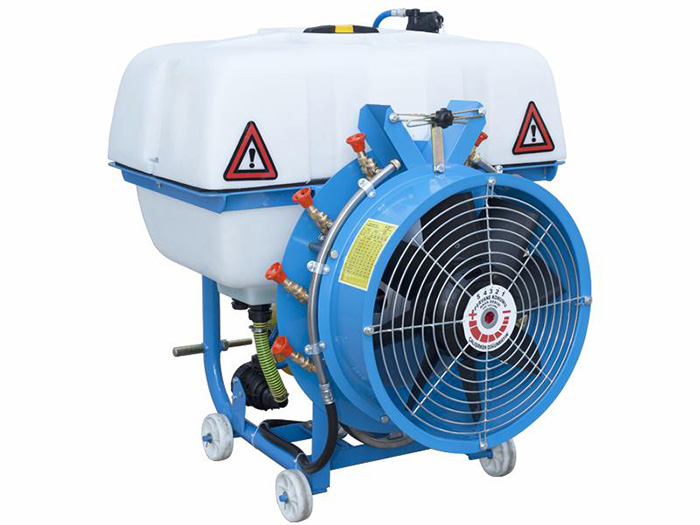

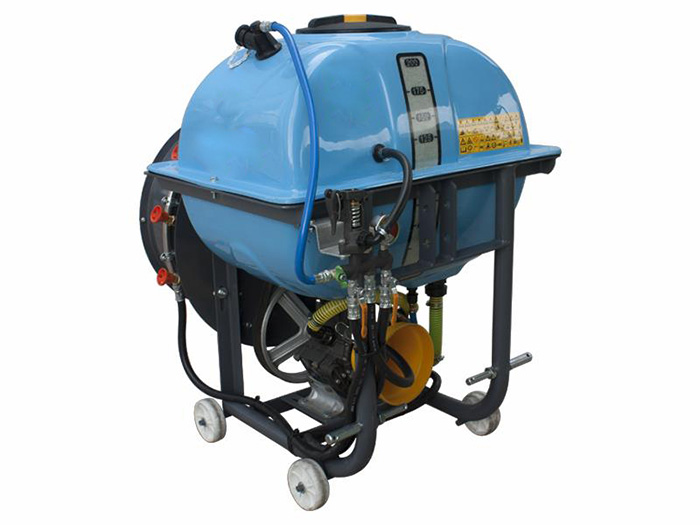

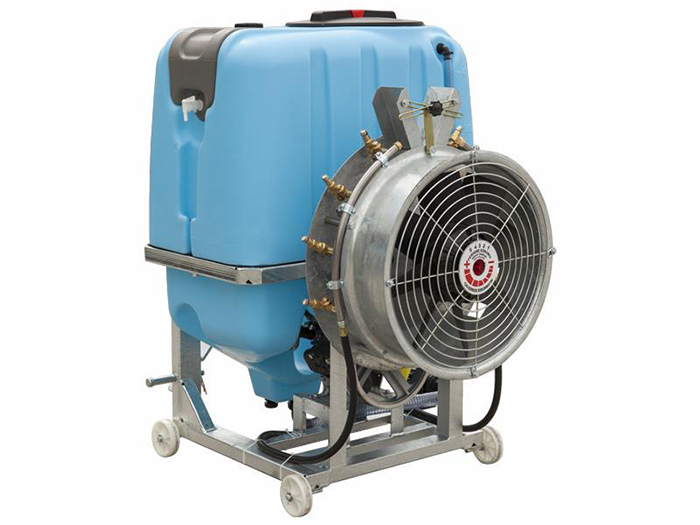

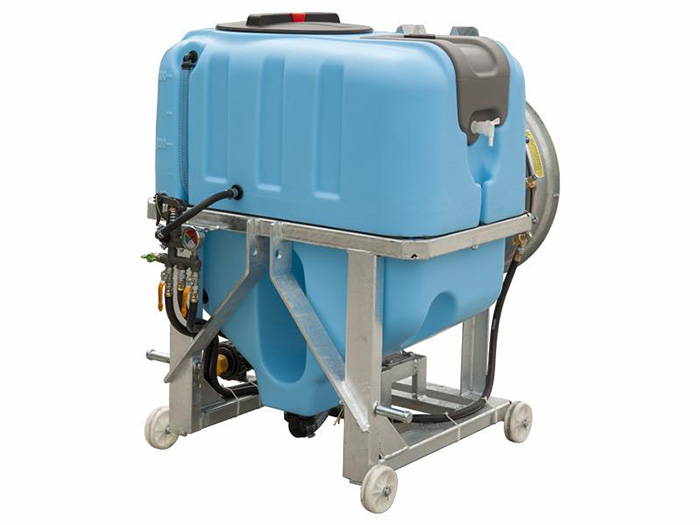

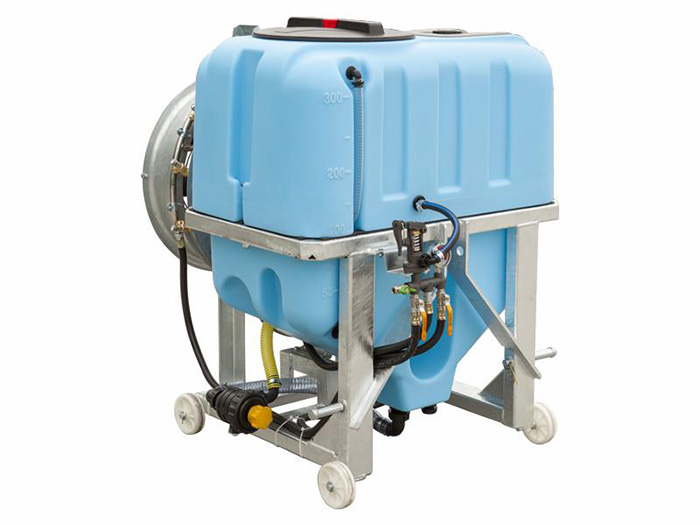

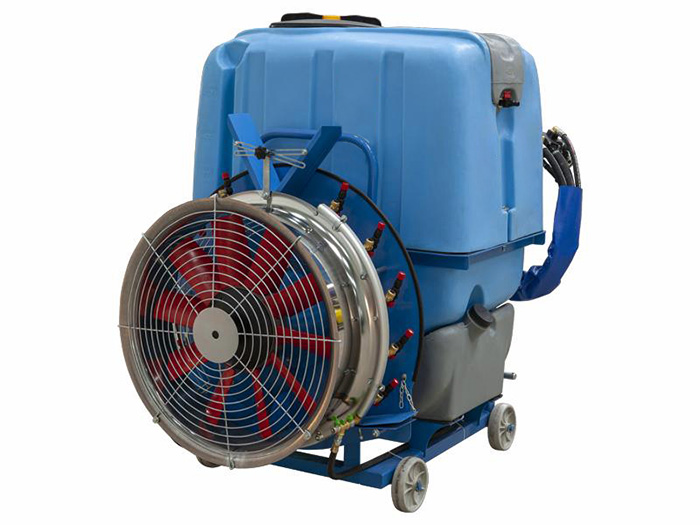

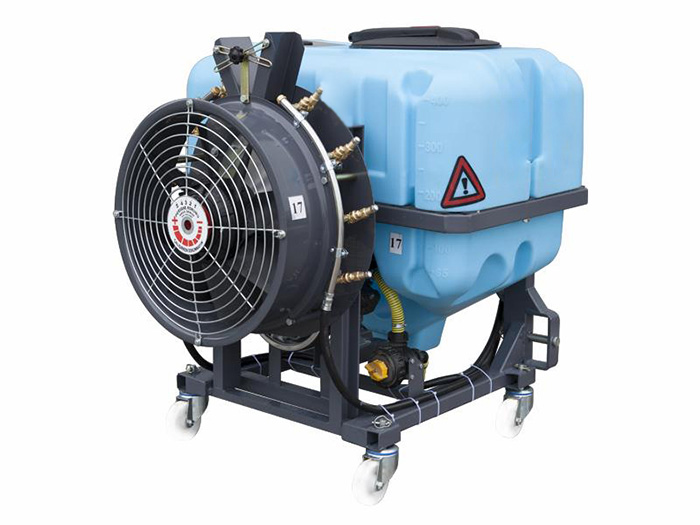

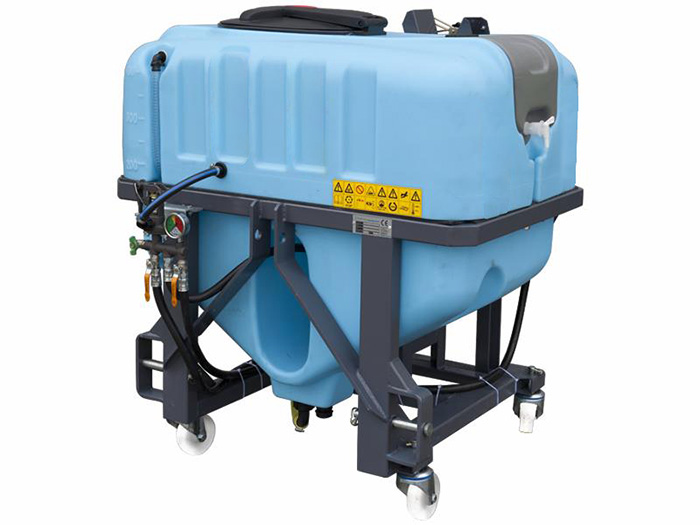

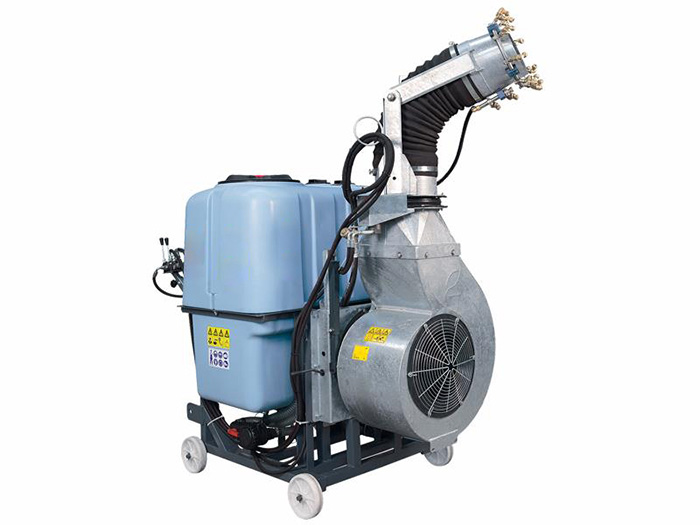

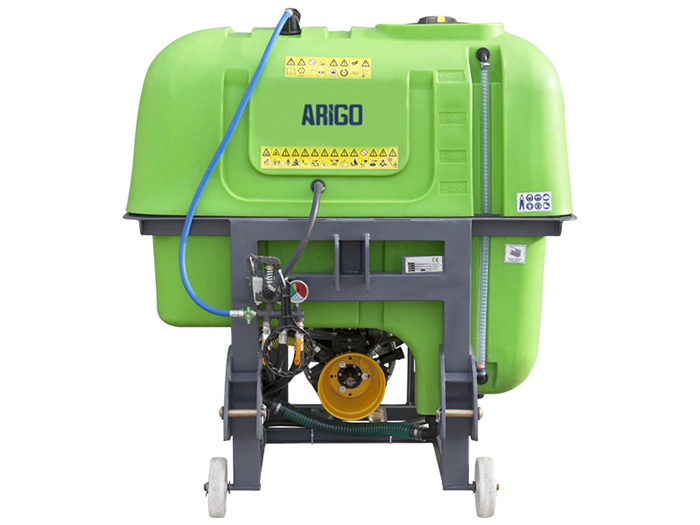

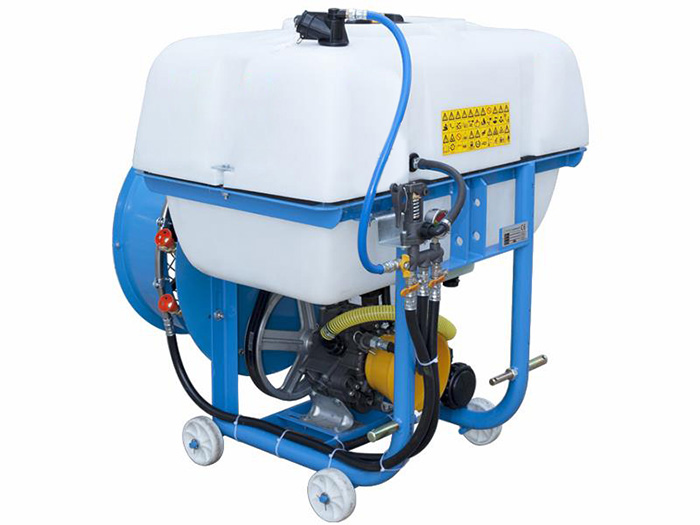

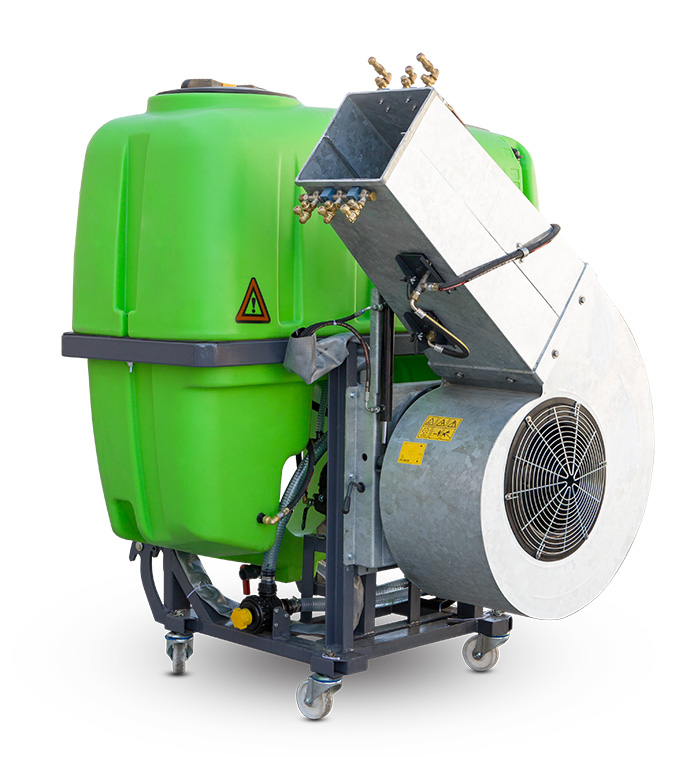

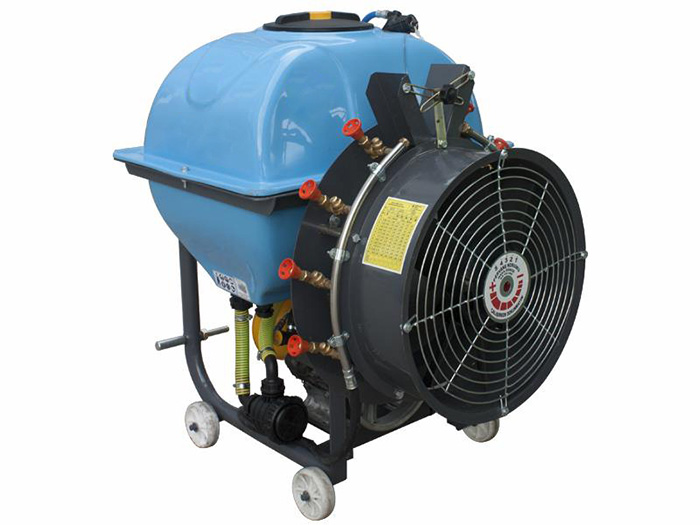

Mounted type 200, 300, 400, 500, 600 and 800 ltr turbo sprayer is attached to the three point of linkage of tractor and getting drive from P.T.O. Spraying pump is getting the power from P.T.O. and deliver the liquid under the pressure to nozzles on the spray fan. Release of the pressured air direction can be adjusted by guide wings. By means of this facility, pressured air can spray effectively each type trees 2 rowed 8-12 meters height as fruit gardens, vineyards and cultivated areas.

Technical Specifications

Specifications	Units	DRA 200	DRA 300	DRA 400	DRA 500	DRA 600 R	DRA 600 C

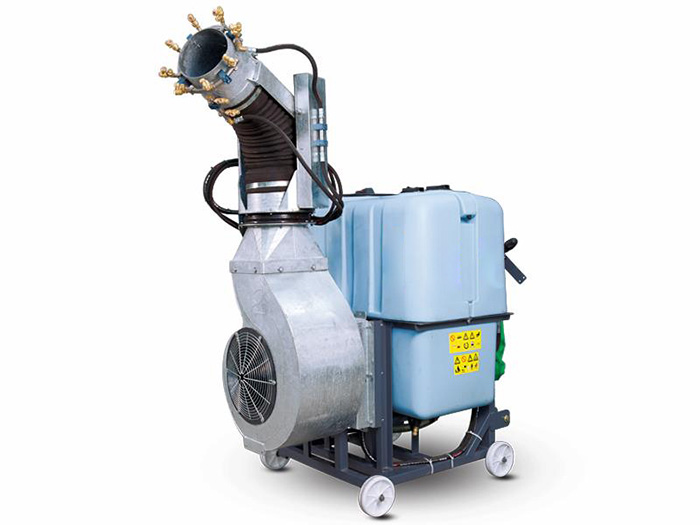

Tank Capacity	L	200	300	400	500	600 Robot Head	600 Canon Type
Flow	L/min	80 (Membrane Pump)	80 (Membrane Pump)	80 (Membrane Pump)	80 (Membrane Pump)	80 (Membrane Pump)	80 (Membrane Pump)
Pressure	bar	50	50	50	50	50	50
Power	hp/kw	8.6	8.6	8.6	8.6	8.6	8.6
Pump Weight	kg	155	165	195	115	125	130
Lenght	mm	115	115	115	140	140	140
Weight	mm	90	90	125	105	110	140
Height	mm	120	120	130	142	187	185
